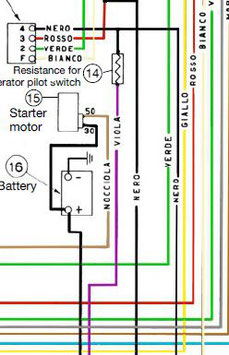

Schaltplan / Wiring diagram



Schaltplan mit Zuordnung der Stromverbraucher / Wiring diagram with assignment for power consumers



DIN A3 Farbe / colored 297 x 420 mm / 11,69 x 16,54 in

DIN A1 Farbe / colored 594 x 841 mm / 23,39 x 33,11 in

DIN A0 Farbe/ colored 841 x 1189 mm / 33,11 x 46,81 in



Iso Rivolta GT, Grifo, Lele, Fidia

Basisplan/ standard diagram

farbliche Kennzeichnung der Kabelführung und Angabe der Verbraucher / colored marking of the cable routing and information about the consumers



Bitte Plangröße auswählen / Please select plan size



A3  49,00 € excl. VAT

A1  79,00 € excl. VAT

A0  99,00 € excl. VAT

0,00 €

  • available / lieferbar
  • 1-3 days delivery, Tage Lieferzeit1
